TMC9660Bootloader.hpp File Reference

Helper for configuring the TMC9660 bootloader registers. More...

#include "TMC9660CommInterface.hpp"
#include <cstddef>
#include <cstdint>

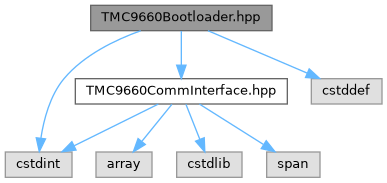

Include dependency graph for TMC9660Bootloader.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	tmc9660::LDOConfig
	Configuration of the on-chip LDO regulators. More...
struct	tmc9660::BootConfig
	Bootloader behaviour configuration. More...
struct	tmc9660::UARTConfig
	UART communication settings for the bootloader. More...
struct	tmc9660::RS485Config
	Optional RS485 transceiver control via the UART_TXEN pin. More...
struct	tmc9660::SPIBootConfig
	SPI interface used for bootloader commands. More...
struct	tmc9660::SPIFlashConfig
	External SPI flash configuration. More...
struct	tmc9660::I2CConfig
	External I2C EEPROM configuration. More...
struct	tmc9660::ClockConfig
	System clock selection parameters. More...
struct	tmc9660::GPIOConfig
	Initial state of the general purpose pins during boot. More...
struct	tmc9660::BootloaderConfig
	Aggregated bootloader configuration written by ::TMC9660Bootloader. More...
class	tmc9660::TMC9660Bootloader
	Convenience wrapper around the bootloader TMCL commands. More...

Namespaces
namespace	tmc9660
namespace	tmc9660::bootcfg
namespace	tmc9660::bootaddr

Enumerations
enum class	tmc9660::bootcfg::LDOVoltage : uint8_t { tmc9660::bootcfg::Disabled = 0 , tmc9660::bootcfg::V2_5 = 1 , tmc9660::bootcfg::V3_3 = 2 , tmc9660::bootcfg::V5_0 = 3 }
	Enumerations describing bootloader configuration options. More...
enum class	tmc9660::bootcfg::LDOSlope : uint8_t { tmc9660::bootcfg::Slope3ms = 0 , tmc9660::bootcfg::Slope1_5ms = 1 , tmc9660::bootcfg::Slope0_75ms = 2 , tmc9660::bootcfg::Slope0_37ms = 3 }
enum class	tmc9660::bootcfg::BootMode : uint8_t { tmc9660::bootcfg::Register = 1 , tmc9660::bootcfg::Parameter = 2 }
enum class	tmc9660::bootcfg::UartRxPin : uint8_t { tmc9660::bootcfg::GPIO7 = 0 , tmc9660::bootcfg::GPIO1 = 1 }
enum class	tmc9660::bootcfg::UartTxPin : uint8_t { tmc9660::bootcfg::GPIO6 = 0 , tmc9660::bootcfg::GPIO0 = 1 }
enum class	tmc9660::bootcfg::BaudRate : uint8_t {   tmc9660::bootcfg::BR9600 = 0 , tmc9660::bootcfg::BR19200 , tmc9660::bootcfg::BR38400 , tmc9660::bootcfg::BR57600 ,   tmc9660::bootcfg::BR115200 , tmc9660::bootcfg::BR1000000 , tmc9660::bootcfg::Auto8x , tmc9660::bootcfg::Auto16x }
enum class	tmc9660::bootcfg::RS485TxEnPin : uint8_t { tmc9660::bootcfg::None = 0 , tmc9660::bootcfg::GPIO8 = 1 , tmc9660::bootcfg::GPIO2 = 2 }
enum class	tmc9660::bootcfg::SPIInterface : uint8_t { tmc9660::bootcfg::IFACE0 = 0 , tmc9660::bootcfg::IFACE1 = 1 }
enum class	tmc9660::bootcfg::SPI0SckPin : uint8_t { tmc9660::bootcfg::GPIO6 = 0 , tmc9660::bootcfg::GPIO11 = 1 }
enum class	tmc9660::bootcfg::SPIFlashFreq : uint8_t { tmc9660::bootcfg::Div1 = 0 , tmc9660::bootcfg::Div2 = 1 , tmc9660::bootcfg::Div4 = 3 }
enum class	tmc9660::bootcfg::I2CSdaPin : uint8_t { tmc9660::bootcfg::GPIO5 = 0 , tmc9660::bootcfg::GPIO11 = 1 , tmc9660::bootcfg::GPIO14 = 2 }
enum class	tmc9660::bootcfg::I2CSclPin : uint8_t { tmc9660::bootcfg::GPIO4 = 0 , tmc9660::bootcfg::GPIO12 = 1 , tmc9660::bootcfg::GPIO13 = 2 }
enum class	tmc9660::bootcfg::I2CFreq : uint8_t { tmc9660::bootcfg::Freq100k = 0 , tmc9660::bootcfg::Freq200k , tmc9660::bootcfg::Freq400k , tmc9660::bootcfg::Freq800k }
enum class	tmc9660::bootcfg::ClockSource : uint8_t { tmc9660::bootcfg::Internal = 0 , tmc9660::bootcfg::External = 1 }
enum class	tmc9660::bootcfg::ExtSourceType : uint8_t { tmc9660::bootcfg::Oscillator = 0 , tmc9660::bootcfg::Clock = 1 }
enum class	tmc9660::bootcfg::XtalDrive : uint8_t { tmc9660::bootcfg::Freq8MHz = 1 , tmc9660::bootcfg::Freq16MHz = 3 , tmc9660::bootcfg::Freq24MHz = 5 , tmc9660::bootcfg::Freq32MHz = 6 }
enum class	tmc9660::bootcfg::SysClkSource : uint8_t { tmc9660::bootcfg::IntOsc = 0 , tmc9660::bootcfg::PLL = 1 }
enum class	tmc9660::bootcfg::SysClkDiv : uint8_t { tmc9660::bootcfg::Div1 = 0 , tmc9660::bootcfg::Div15MHz = 3 }

Variables
constexpr uint32_t	tmc9660::bootaddr::BASE = 0x00020000
	Base offset of the configuration registers inside bank 5.
constexpr uint32_t	tmc9660::bootaddr::UART_ADDR = BASE + 0x02
	UART device/host address register.
constexpr uint32_t	tmc9660::bootaddr::RS485_DELAY = BASE + 0x04
	RS485 TXEN delay configuration.
constexpr uint32_t	tmc9660::bootaddr::COMM_CONFIG = BASE + 0x06
	Communication selection (UART/SPI/RS485).
constexpr uint32_t	tmc9660::bootaddr::SPI_FLASH = BASE + 0x0A
	SPI flash configuration register.
constexpr uint32_t	tmc9660::bootaddr::I2C_CONFIG = BASE + 0x0C
	I2C EEPROM configuration register.
constexpr uint32_t	tmc9660::bootaddr::GPIO_OUT = BASE + 0x0E
	GPIO output level register.
constexpr uint32_t	tmc9660::bootaddr::GPIO_DIR = BASE + 0x10
	GPIO direction register.
constexpr uint32_t	tmc9660::bootaddr::GPIO_PU = BASE + 0x12
	GPIO pull-up register.
constexpr uint32_t	tmc9660::bootaddr::GPIO_PD = BASE + 0x14
	GPIO pull-down register.
constexpr uint32_t	tmc9660::bootaddr::GPIO_ANALOG = BASE + 0x16
	GPIO analog enable register.
constexpr uint32_t	tmc9660::bootaddr::CLOCK_CONFIG = BASE + 0x18
	Clock configuration register.

Detailed Description

Helper for configuring the TMC9660 bootloader registers.
